Steel Products
Billet
Billets are semi-finished long products that are rectangular, circular, or square in shape, high-quality Billets are produced through a continuous casting process and they need to be furtherly processed by rolling to become a final product as rebars, wire rod, sections, and other profiles.
Sector:
Used as raw materials or feedstock in rolling the rebar, wire rod, and other metal processing operations.
Billet Specification

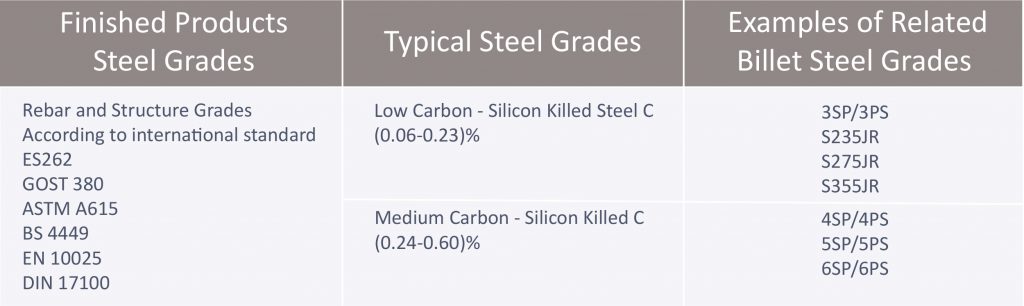

Billet Grades
Rebar
Steel reinforcement bars or rebar’s are used to improve the strength of the concrete, It is produced in different diameters and grades based on the application. Rebars strength and other mechanical properties can be controlled by the addition of different elements during alloying and controlling its process parameters as well as thermo-mechanical rolling to meet the end-use.
Despite being hidden in buildings, bridges and so many other objects, rebars is a product used everywhere in almost everything around us.
Sector:
Construction.
Infrastructure.
Rebar Specifications
| Diameter | Length | Packing | |
| Water-Coiled Rebar Air-Coiled Rebar Longs | From 8 to 40mm | Up to 15 M | Up to 2 Ton |
| Rebar in coil | From 6 to 14mm | – | Up to 1.5 Ton |
| Rebar once folded | From 8 to 40mm | Up to 12 M | Up to 2 Ton |

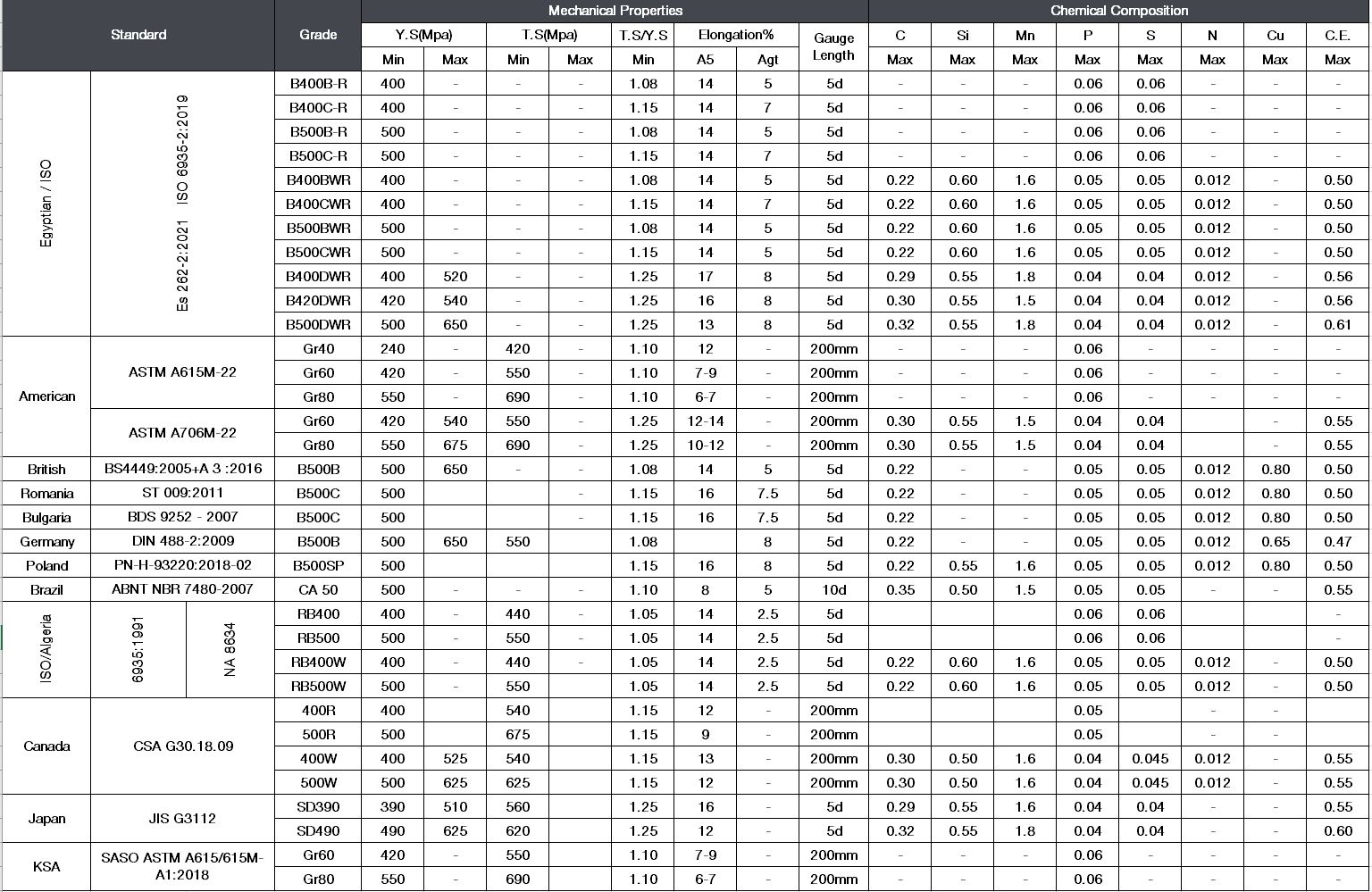

Rebar Grades
| Standard | Grade | Mechanical Properties | Chemical Composition | ||||||||||||||||
| Y.S(Mpa) | T.S(Mpa) | T.S/Y.S | Elongation% | Gauge Length | C | Si | Mn | P | S | N | Cu | C.E. | |||||||
| Min | Max | Min | Max | Min | A5 | Agt | Max | Max | Max | Max | Max | Max | Max | Max | |||||
|
Egyptian / ISO |
Es 262-2:2021 ISO 6935-2:2019 | B400B-R | 400 | – | – | – | 1.08 | 14 | 5 | 5d | – | – | – | 0.06 | 0.06 | – | – | – | |
| B400C-R | 400 | – | – | – | 1.15 | 14 | 7 | 5d | – | – | – | 0.06 | 0.06 | – | – | – | |||
| B500B-R | 500 | – | – | – | 1.08 | 14 | 5 | 5d | – | – | – | 0.06 | 0.06 | – | – | – | |||
| B500C-R | 500 | – | – | – | 1.15 | 14 | 7 | 5d | – | – | – | 0.06 | 0.06 | – | – | – | |||
| B400BWR | 400 | – | – | – | 1.08 | 14 | 5 | 5d | 0.22 | 0.60 | 1.6 | 0.05 | 0.05 | 0.012 | – | 0.50 | |||
| B400CWR | 400 | – | – | – | 1.15 | 14 | 7 | 5d | 0.22 | 0.60 | 1.6 | 0.05 | 0.05 | 0.012 | – | 0.50 | |||
| B500BWR | 500 | – | – | – | 1.08 | 14 | 5 | 5d | 0.22 | 0.60 | 1.6 | 0.05 | 0.05 | 0.012 | – | 0.50 | |||
| B500CWR | 500 | – | – | – | 1.15 | 14 | 5 | 5d | 0.22 | 0.60 | 1.6 | 0.05 | 0.05 | 0.012 | – | 0.50 | |||
| B400DWR | 400 | 520 | – | – | 1.25 | 17 | 8 | 5d | 0.29 | 0.55 | 1.8 | 0.04 | 0.04 | 0.012 | – | 0.56 | |||
| B420DWR | 420 | 540 | – | – | 1.25 | 16 | 8 | 5d | 0.30 | 0.55 | 1.5 | 0.04 | 0.04 | 0.012 | – | 0.56 | |||
| B500DWR | 500 | 650 | – | – | 1.25 | 13 | 8 | 5d | 0.32 | 0.55 | 1.8 | 0.04 | 0.04 | 0.012 | – | 0.61 | |||
| American | ASTM A615M-22 | Gr40 | 240 | – | 420 | – | 1.10 | 12 | – | 200mm | – | – | – | 0.06 | – | – | – | – | |
| Gr60 | 420 | – | 550 | – | 1.10 | 7-9 | – | 200mm | – | – | – | 0.06 | – | – | – | – | |||
| Gr80 | 550 | – | 690 | – | 1.10 | 6-7 | – | 200mm | – | – | – | 0.06 | – | – | – | – | |||
| ASTM A706M-22 | Gr60 | 420 | 540 | 550 | – | 1.25 | 12-14 | – | 200mm | 0.30 | 0.55 | 1.5 | 0.04 | 0.04 | – | 0.55 | |||
| Gr80 | 550 | 675 | 690 | – | 1.25 | 10-12 | – | 200mm | 0.30 | 0.55 | 1.5 | 0.04 | 0.04 | – | 0.55 | ||||
| British | BS4449:2005+A 3 :2016 | B500B | 500 | 650 | – | – | 1.08 | 14 | 5 | 5d | 0.22 | – | – | 0.05 | 0.05 | 0.012 | 0.80 | 0.50 | |
| Romania | ST 009:2011 | B500C | 500 | – | 1.15 | 16 | 7.5 | 5d | 0.22 | – | – | 0.05 | 0.05 | 0.012 | 0.80 | 0.50 | |||
| Bulgaria | BDS 9252 – 2007 | B500C | 500 | – | 1.15 | 16 | 7.5 | 5d | 0.22 | – | – | 0.05 | 0.05 | 0.012 | 0.80 | 0.50 | |||
| Germany | DIN 488-2:2009 | B500B | 500 | 650 | 550 | 1.08 | 8 | 5d | 0.22 | – | – | 0.05 | 0.05 | 0.012 | 0.65 | 0.47 | |||
| Poland | PN-H-93220:2018-02 | B500SP | 500 | 1.15 | 16 | 8 | 5d | 0.22 | 0.55 | 1.6 | 0.05 | 0.05 | 0.012 | 0.80 | 0.50 | ||||
| Brazil | ABNT NBR 7480-2007 | CA 50 | 500 | – | – | – | 1.10 | 8 | 5 | 10d | 0.35 | 0.50 | 1.5 | 0.05 | 0.05 | – | – | 0.55 | |
| ISO/Algeria | 6935:1991 | NA 8634 | RB400 | 400 | – | 440 | – | 1.05 | 14 | 2.5 | 5d | 0.06 | 0.06 | – | |||||
| RB500 | 500 | – | 550 | – | 1.05 | 14 | 2.5 | 5d | 0.06 | 0.06 | – | ||||||||
| RB400W | 400 | – | 440 | – | 1.05 | 14 | 2.5 | 5d | 0.22 | 0.60 | 1.6 | 0.05 | 0.05 | 0.012 | – | 0.50 | |||
| RB500W | 500 | – | 550 | 1.05 | 14 | 2.5 | 5d | 0.22 | 0.60 | 1.6 | 0.05 | 0.05 | 0.012 | – | 0.50 | ||||
| Canada | CSA G30.18.09 | 400R | 400 | 540 | 1.15 | 12 | – | 200mm | 0.05 | – | – | ||||||||
| 500R | 500 | 675 | 1.15 | 9 | – | 200mm | 0.05 | – | – | ||||||||||
| 400W | 400 | 525 | 540 | 1.15 | 13 | – | 200mm | 0.30 | 0.50 | 1.6 | 0.04 | 0.045 | 0.012 | – | 0.55 | ||||
| 500W | 500 | 625 | 625 | 1.15 | 12 | – | 200mm | 0.30 | 0.50 | 1.6 | 0.04 | 0.045 | 0.012 | – | 0.55 | ||||
| Japan | JIS G3112 | SD390 | 390 | 510 | 560 | 1.25 | 16 | – | 5d | 0.29 | 0.55 | 1.6 | 0.04 | 0.04 | – | – | 0.55 | ||
| SD490 | 490 | 625 | 620 | 1.25 | 12 | – | 5d | 0.32 | 0.55 | 1.8 | 0.04 | 0.04 | – | – | 0.60 | ||||
| KSA | SASO ASTM A615/615M-A1:2018 | Gr60 | 420 | – | 550 | 1.10 | 7-9 | – | 200mm | – | – | – | 0.06 | – | – | – | – | ||
| Gr80 | 550 | – | 690 | 1.10 | 6-7 | – | 200mm | – | – | – | 0.06 | – | – | – | – | ||||
Wire Rod
A hot rolled alloy or non-alloy steel product, produced from billets. Particularly fine cross-sections may be achieved by subsequent cold forming. Wire rod is wound into coils and transported in this form. Unlike rebars, Wire rod is used in many applications rather than reinforcing concrete structures and is produced in different grades and qualities based on the required application.
Sector:
Reinforcing concrete structures.
Aluminum and Copper rod.
Welding electrodes.
Drawn and galvanized wire.
Nails, bolts, and tacks.
Sling wire rope.
Electrical components and household goods.
Electric cable armoring.
Furniture springs.
Automotive components.
Fasteners and fixings.
Wire mesh.
Wire Rod Specifications
| Size | Coil weight | Inner coil Diameter | Outer coil Diameter | Length |
| 5.5 to 14 mm | Around 1.5 Ton | 85 to 100 cm | 100 to 130 cm | 100 to 130 cm |
Wire Rod Grades
| teel Grade | Chemical Composition (w.t%) | |||||
| C | Si | Mn | P | S | ||
| AISI 1006 | Min. | 0.00 | 0.00 | 0.25 | 0.000 | 0.000 |
| Max. | 0.08 | 0.10 | 0.40 | 0.040 | 0.050 | |
| AISI 1008 | Min. | 0.00 | 0.00 | 0.30 | 0.000 | 0.000 |
| Max. | 0.10 | 0.20 | 0.50 | 0.040 | 0.050 | |
| AISI 1010 | Min. | 0.08 | 0.00 | 0.30 | 0.000 | 0.000 |
| Max. | 0.13 | 0.30 | 0.60 | 0.040 | 0.050 | |
| AISI 1012 | Min. | 0.10 | 0.00 | 0.30 | 0.000 | 0.000 |
| Max. | 0.15 | 0.30 | 0.60 | 0.040 | 0.050 | |
| AISI 1013 | Min. | 0.11 | 0.00 | 0.50 | 0.000 | 0.000 |
| Max. | 0.16 | 0.30 | 0.80 | 0.040 | 0.050 | |
| AISI 1015 | Min. | 0.13 | 0.00 | 0.30 | 0.000 | 0.000 |
| Max. | 0.18 | 0.30 | 0.60 | 0.040 | 0.050 | |
| AISI 1017 | Min. | 0.15 | 0.00 | 0.30 | 0.000 | 0.000 |
| Max. | 0.20 | 0.30 | 0.60 | 0.040 | 0.050 | |
| AISI 1018 | Min. | 0.15 | 0.00 | 0.60 | 0.000 | 0.000 |
| Max. | 0.20 | 0.30 | 0.90 | 0.040 | 0.050 | |
| AISI 1020 | Min. | 0.18 | 0.00 | 0.30 | 0.000 | 0.000 |
| Max. | 0.23 | 0.30 | 0.60 | 0.040 | 0.050 | |
| AISI 1022 | Min. | 0.18 | 0.00 | 0.70 | 0.000 | 0.000 |
| Max. | 0.23 | 0.30 | 1.00 | 0.040 | 0.050 | |
